RACO Products Overview

MA Electric Actuator	COMPACT Actuator	LM Linear Drive	RM Rotary

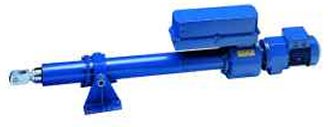

MA - Series Heavy Duty Modular Electric Actuator (Rod Type linear actuator)

The flexibility of the RACO modular MA Series offers a wide variety of motors and accessories and accommodates the requirements of modern computerized production with a full range of speed and thrust combinations and highly precise positioning accuracy. The RACO Electric Rodtype Actuators come in 11 different sizes ACME or high precision ballscrew driven. Modular system allows custom built units using the special high torque RACO actuator motor or servo and stepper motors.

Largest installed base in the world

Thrust capacity from 65 lb. to 200,000 lbs.

Positioning, Thirteen distinct standard stroke lengths from 3.9 to 78.7 inches

speeds to 30 inches per second

Ball or acme power screw thread configuration available through 200,000 lbs.

Multiple screw leads available in every size to optimize motor / gearhead / output speed capability

Complete line of standard controls and options

ISO 9001 Manufacturing

Typical Delivery = 2 to 3 week

COMPACT - Series Modular Electric Linear Actuator
(compact industrial strength economical actuator)

A modular reliable performance, industry strength electric linear actuator in a compact economical package
Smaller installed envelope sizeNominal thrust ratings from 110 lb. to 9000 lb.Five distinct standard stroke lengths: 3.9, 7.9, 11.8, 15.7, 23.6 inchesAll sizes available in ball or acme power screw thread configurationsMultiple leads available in every size to optimize motor / reduction / output speed capabilityComplete line of standard controls and optionsISO 9001 Manufacturing

LM- Series Linear Drive (Rodless Actuator) ( Belt or Screw Driven)

The LM Rodless Linear Actuator provides precise, guided linear motion of the carriage assembly driven by a steel cord reinforced, high modulus, wear-resistant polyurethane drive belt. The standard load attachment plate is securely fastened to the carriage providing a readily adaptable attachment platform or any load
Load Capacities to 2200 lbs. Thrust Potential to 4500 lbs. Speeds up to 400 in/sec. Lengths over 100 Ft. Accuracy to 0.005 inches per foot of travel Multi-axis Modularity Integral position feedback and precise position control full Engineering Support

RM - Rotary Electric Actuator

The RM rotary actuator is designed for automatic operation of valves, gates and other applications requiring rotary motion. The product line follows the RACO modular principle, well known in the linear actuator line. The modular system allows RACO to offer a custom made rotary unit optimized and built for a given application, at a competitive price.

Reliable all electric systemTorques up to 10000 lb-ftFractional or multi turn operation vide range of speeds Available in 7 sizes Hollow or solid output shaft Analog or digital position feed back Electronic torque control Optional hand-wheel for manual operation

Actuator Accessories - Electronic and electromechanical control devices

RACO offers a range of control devices designed for use with actuators and other electromechanical equipment. The offered accessories provide features that enhance the safety, flexibility and versatility of the actuator.

mechanical adjustable limit switches adjustable electronic limit switches & position feedback thrust overload protection set point and position feedback devices hall effect limit switches position controller with variable frequency drives power & control quick connectors

RACO Precision Ground Ball Screws

Raco is manufacturing precision ball screws for decades. Many precision machine tool manufacturer select the unsurpassed guaranteed RCAO Precision. from single piece to series production or rebuild, RACO has the know how built on precision.
Contact us with your special requirements

RACO Failsafe All Electric Brake actuator

RACO is practically the sole supplier in the world of Failsafe clean electrical brake actuators for mass transportation\, light rail vehicles, electric locomotives etc.
Contac us wit your specific requirements

"Mouse-over" the product image to see the product highlights
To Drill-Down for details use the menu in the left frame, or click the image

We serve virtually all industries
see some RACO Actuator Application Examples
