| Adjustment range | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |

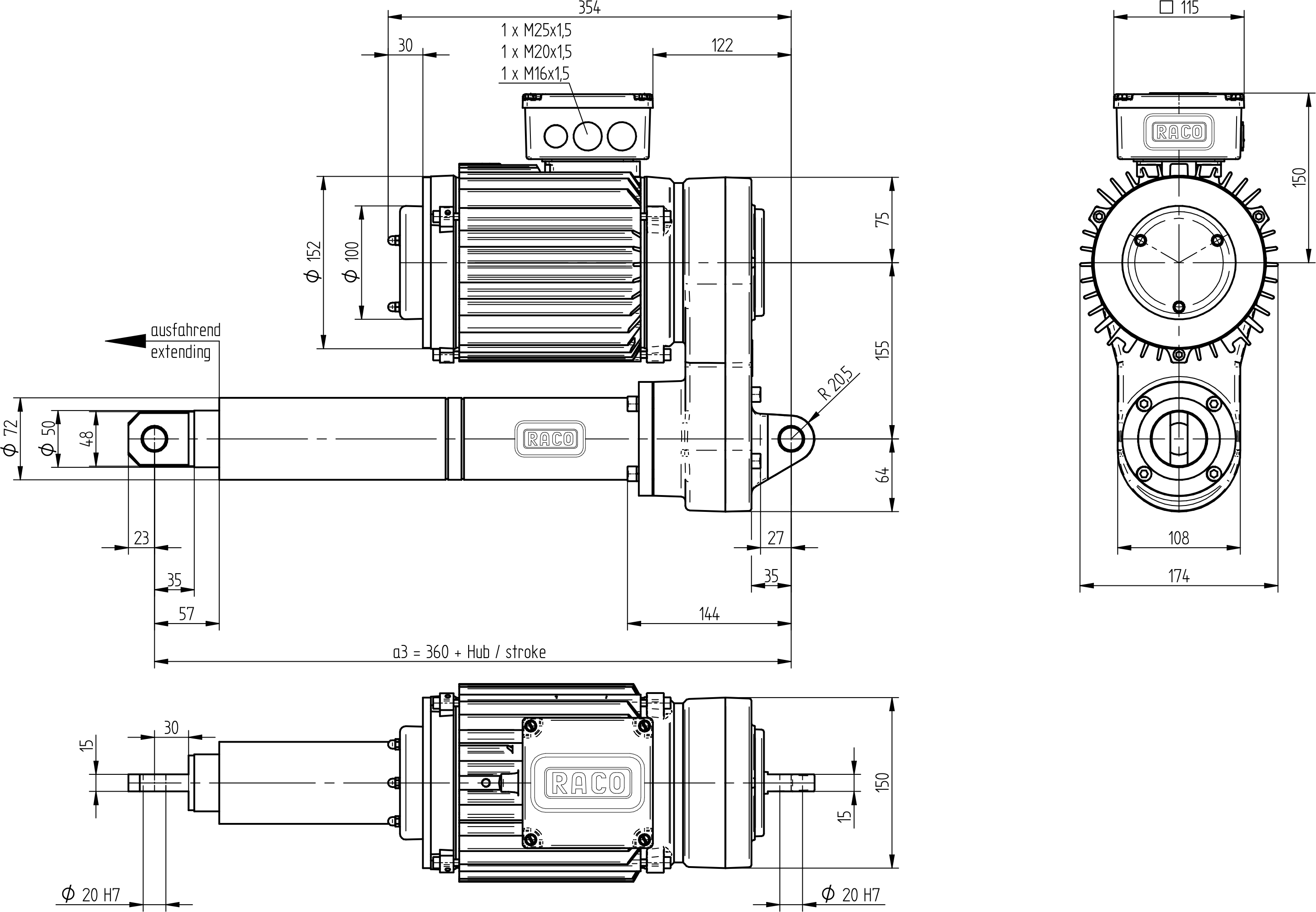

| a3 (mm) | 560 | 660 | 760 | 860 | 960 | 1160 | 1360 |
| Spindle type | Trapezoidal screw |
| Thrust force (kN) | 7.50 |
| Voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Speed (mm/s) | 75.00 |
| Power (kW) | 1.50 |
| Current (A) | 5.10 |
| Converter (kW) | — |
| Adjustment range | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
| a3 (mm) | 560 | 660 | 760 | 860 | 960 | 1160 | 1360 |
| Spindle type | Trapezoidal screw |
| Thrust force (kN) | 7.50 |
| Voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Speed (mm/s) | 75.00 |
| Power (kW) | 1.50 |
| Current (A) | 5.10 |
| Converter (kW) | — |
