RACO
High performance

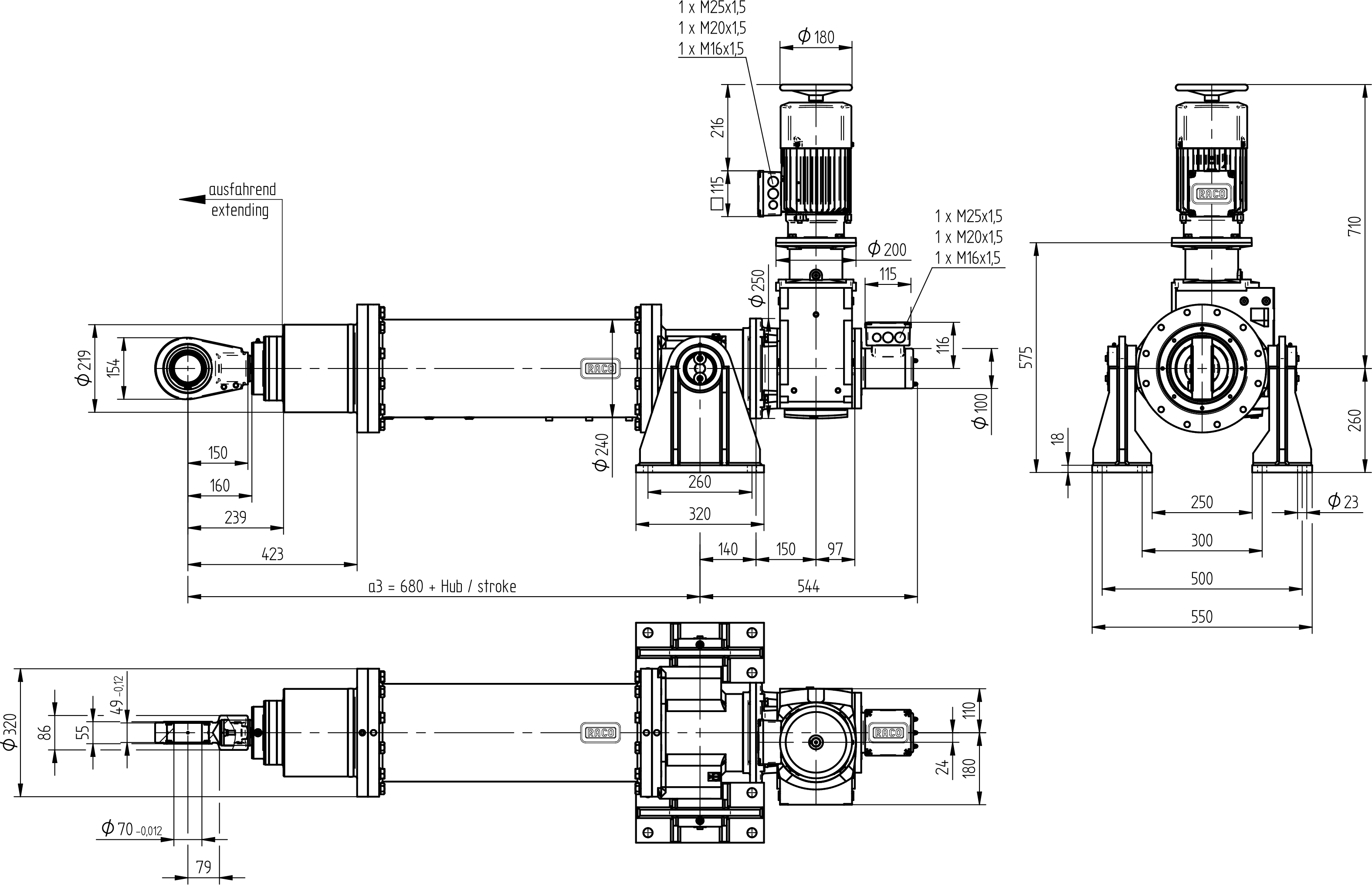

Electric actuator K1T9 - 148303
| Adjustment range | 200 | 400 | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 |
| a3 (mm) | 880 | 1080 | 1280 | 1480 | 1680 | 1880 | 2080 | 2280 | 2480 | 2680 |
| Spindle type | Ball screw |
| Thrust force (kN) | 160.00 |
| Voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Speed (mm/s) | 5.00 |
| Power (kW) | 1.50 |
| Current (A) | 3.20 |
| Converter (kW) | — |
