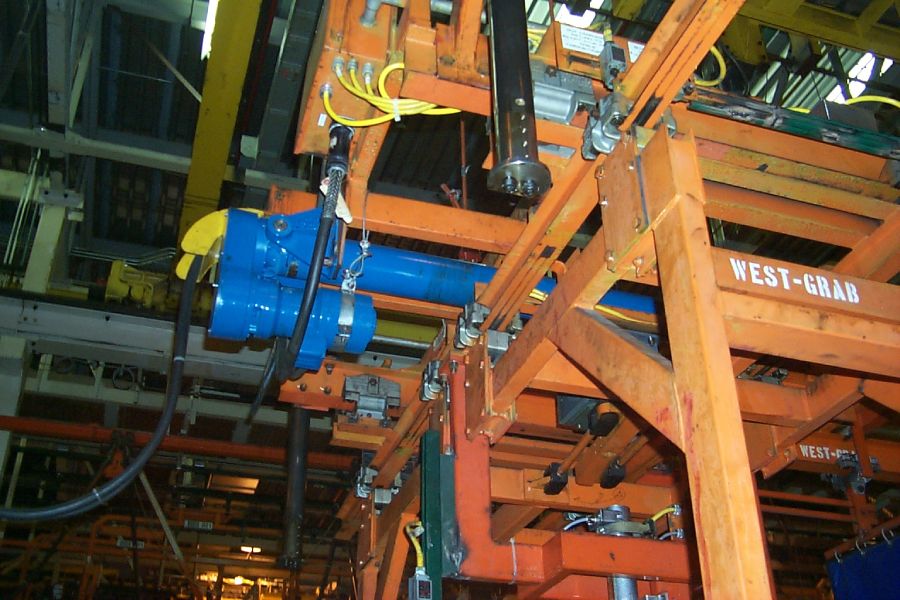

RACO'S MA SERIES — MODULAR ACTUATOR SYSTEM

Name: Modular Actuator MA
Brand: RACO

HEAVY DUTY LINEAR ACTUATORS BUILT FOR INDUSTRIAL LOADS

RACO's MA Series delivers up to 314,700 lbs (1400 kN) of thrust across multiple modular frame sizes with native compatibility for most standard industrial electric motors. No custom fabrication. No re-engineering your drive infrastructure.

Request Technical Drawing View Specifications

70+ YEARS In Operation
MADE IN USA Engineered & Manufactured
NEMA-FRAME MOTOR Compatible
ACME & BALL SCREW Configurations

WHY RACO MA SERIES

WHEN LOAD PROFILES DEMAND MORE THAN A STANDARD ACTUATOR

Modular by Design

Motor type, screw choice, stroke length, and voltage can each be selected independently. Align with your existing drive setup without the delays of custom fabrication.
Broad Force Range

Multiple frame sizes cover 110 lbf through 225,000 lbf. Engineers can select a frame sized precisely to the application load profile, avoiding oversized, overpriced units.
Servo-Ready Architecture

Ball screw options and servo motor compatibility make the MA Series suitable for closed-loop positioning systems where repeatability and duty cycle are non-negotiable.
Scalable Across Programs

Consistent platform architecture across frame sizes lets procurement teams standardize on a single actuator family and apply it across multiple production lines or machine generations.
Domestic Engineering Support

RACO operates from Bethel Park, PA. Regional OEM manufacturers get direct access to applications engineers. No overseas queues for configuration support, CAD files, or documentation.
3D CAD on Request

Fully validated 3D CAD models for every MA Series configuration are ready right away. Import the geometry straight into your assembly to check clearances before fabrication begins.

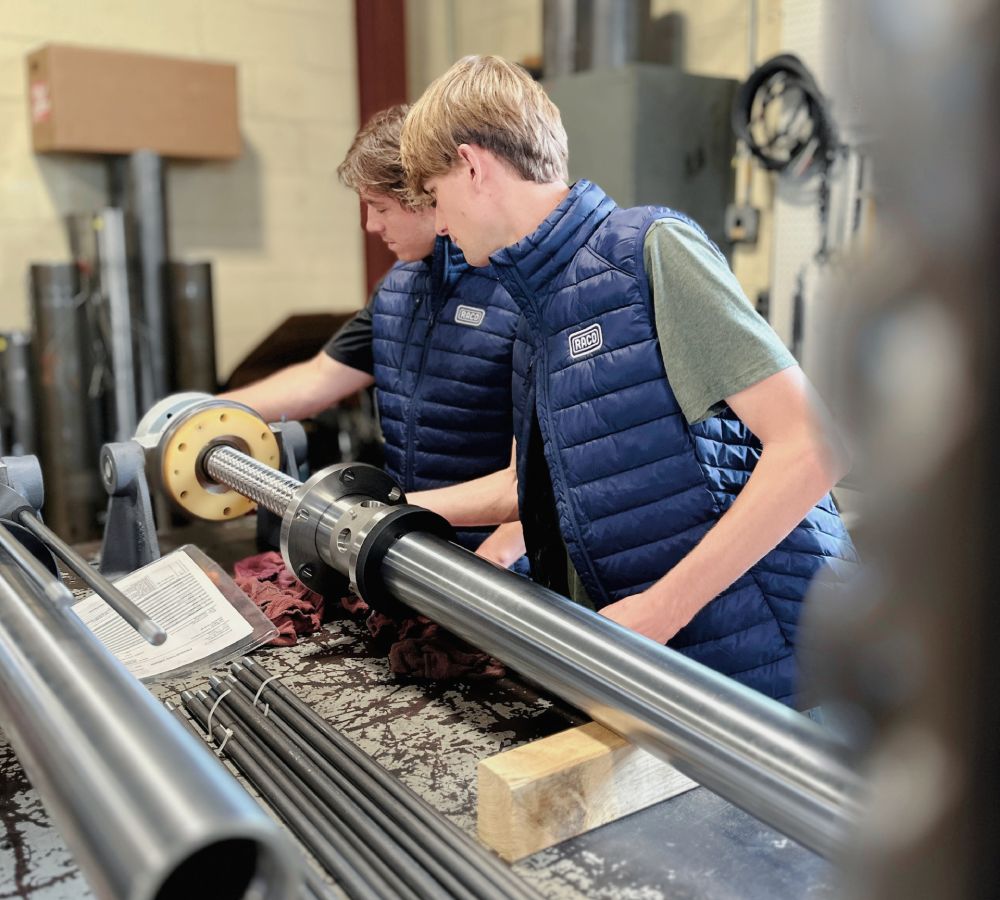

PRODUCT OVERVIEW A Heavy Duty Linear Actuator System That Adapts to Your Drive

The MA Series is RACO's flagship modular linear actuator system. A heavy-duty electric cylinder platform designed for demanding industrial applications where force, precision, and motor flexibility must coexist in a single unit.

Unlike fixed-configuration actuators, the MA Series separates motor selection from mechanical specification. Engineers can attach a standard RACO motor, an AC gear motor, a DC gear motor, or a servo drive to the same mechanical housing without modifying the actuator body.

This modularity directly solves one of the most persistent challenges in machine design: motor standardization. Facilities that have already standardized on a particular motor frame or drive ecosystem can integrate the MA Series without redesigning motor mounts or drive electronics. The actuator adapts to the existing drive infrastructure.

TECHNICAL SPECIFICATIONS

MA SERIES PERFORMANCE PARAMETERS

All frame sizes share the same modular actuator platform. Representative configurations are shown below. Custom stroke increments are available within each size range. Full data sheets and screw selection tables are available on request.

Type A

Type M

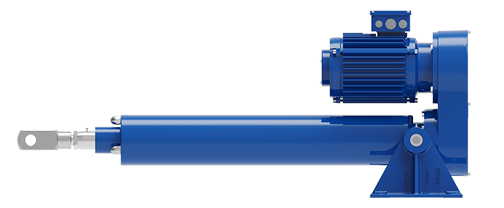

Type C

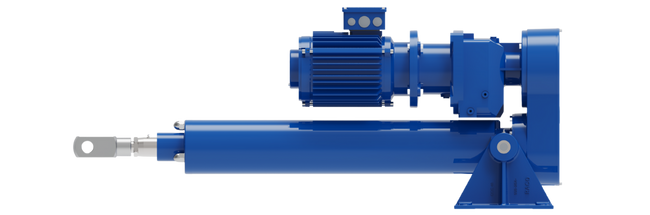

Type N

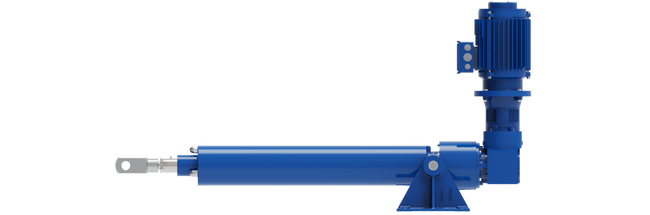

Type T

Actuator is Driven by a Direct Drive RACO Motor

ACME Screw

Actuator	Nominal	Nominal	Stroke Range		Run	Start-up	Nominal		Motor	Stall
Type	Force	Actuator	min.	max	Torque		Motor	Pol	Current	Torque
		Speed			@Nominal Force		Size		@ Load/460V
	lbf.	inch/sec.	inch	inch	lb-ft.	lb-ft.	kW	P	A	lb-ft.
T1A4	550	1.6	3.9	39.4	2.56	3.44	0.30	8	1.13	5.75
T1A4	550	2.4	3.9	39.4	2.56	3.44	0.44	6	1.10	5.68
T1A4	550	3.3	3.9	39.4	2.56	3.44	0.65	4	1.48	6.27
T1A4	550	6.6	3.9	39.4	2.56	3.44	1.30	2	2.47	9.74
T1A5	1100	2.4	3.9	39.4	6.75	9.04	0.90	8	2.49	14.90
T1A5	1100	2.8	3.9	39.4	6.75	9.04	0.90	6	2.90	13.13
T1A5	1100	4.7	3.9	39.4	6.75	9.04	1.80	4	3.10	18.81
T1A6	2200	2.8	7.9	70.9	16.75	22.44	2.60	8	4.70	41.67
T1A6	2200	3.7	7.9	70.9	16.75	22.44	2.60	6	5.50	36.36
T1A6	2200	5.7	7.9	70.9	16.75	22.44	3.60	4	7.81	39.16
T1A7	4500	5.7	7.9	78.7	45.58	60.96	5.00	6	14.32	99.05

Ball Screw

Actuator	Nominal	Nominal	Stroke Range		Run	Start-up	Nominal		Motor	Stall
Type	Force	Actuator	min.	max	Torque		Motor	Pol	Current	Torque
		Speed			@Nominal Force		Size		@ Load/460V
	lbf.	inch/sec.	inch	inch	lb-ft.	lb-ft.	kW	P	A	lb-ft.
K1A4	550	3.3	3.9	39.4	2.58	2.95	0.3	8	1.14	5.68
K1A4	550	4.2	3.9	39.4	2.58	2.95	0.44	6	1.11	5.68
K1A4	550	6.6	3.9	39.4	2.58	2.95	0.65	4	1.50	6.27
K1A4	550	13.5	3.9	39.4	2.58	2.95	1.3	2	2.50	9.74
K1A5	1100	4.2	3.9	39.4	6.93	7.82	0.9	8	2.55	14.90
K1A5	1100	5.7	3.9	39.4	6.93	7.82	0.9	6	2.97	13.05
K1A5	1100	8.5	3.9	39.4	6.93	7.82	1.3	4	3.33	13.72
K1A6	2200	5.7	7.9	63.0	17.26	19.55	2.6	8	4.84	41.67
K1A6	2200	7.6	7.9	63.0	17.26	19.55	2.6	6	5.67	36.36
K1A7	4500	8.5	7.9	78.7	41.45	46.98	5	6	13.04	99.05

Actuator is Driven by an In-line Gearmotor

ACME Screw

Actuator	Nominal	Nominal	Stroke Range		Run	Start-up	Nominal		Motor	Stall
Type	Force	Actuator	min.	max	Torque		Motor	Pol	Current	Torque
		Speed			@Nominal Force		Size		@ Load/460V
	lbf.	inch/sec.	inch	inch	lb-ft.	lb-ft.	kW	P	A	lb-ft.
T1M4	1100	0.2	3.9	39.4	5.12	6.87	0.11	8	0.40	14.2
T1M4	1100	0.5	3.9	39.4	5.12	6.87	0.21	6	0.76	10.5
T1M4	1100	0.7	3.9	39.4	5.12	6.87	0.30	4	0.68	11.6
T1M4	1100	0.9	3.9	39.4	5.12	6.87	0.44	4	0.84	14.9
T1M4	1100	1.2	3.9	39.4	5.12	6.87	0.44	4	1.11	11.3
T1M4	1100	1.4	3.9	39.4	5.12	6.87	0.44	4	1.30	9.6
T1M5	2200	0.2	3.9	39.4	13.50	18.09	0.21	6	0.60	35.1
T1M5	2200	0.5	3.9	39.4	13.50	18.09	0.44	4	0.97	33.8
T1M5	2200	0.7	3.9	39.4	13.50	18.09	0.44	4	1.33	24.6
T1M5	2200	0.9	3.9	39.4	13.50	18.09	0.90	4	1.60	40.1
T1M5	2200	1.2	3.9	39.4	13.50	18.09	0.90	4	2.12	30.3
T1M5	2200	1.4	3.9	39.4	13.50	18.09	0.90	4	2.56	25.1
T1M6	4500	0.2	7.9	47.2	33.51	44.88	0.30	8	0.56	73.7
T1M6	4500	0.5	7.9	47.2	33.51	44.88	0.90	4	1.71	93.4
T1M6	4500	0.7	7.9	47.2	33.51	44.88	0.90	4	2.54	62.9
T1M6	4500	0.9	7.9	47.2	33.51	44.88	1.30	4	2.78	79.9
T1M6	4500	1.2	7.9	47.2	33.51	44.88	1.80	4	3.66	79.1
T1M6	4500	1.4	7.9	47.2	33.51	44.88	1.80	4	4.02	72.0
T1M6	3400	1.9	7.9	55.1	25.13	33.66	1.80	4	3.96	54.8
T1M7	11250	0.2	7.9	55.1	113.95	152.40	0.90	4	1.76	309.3
T1M7	11250	0.5	7.9	55.1	113.95	152.40	1.80	4	3.40	289.2
T1M7	11250	0.7	7.9	55.1	113.95	152.40	2.60	4	5.09	335.1
T1M7	9000	0.9	7.9	55.1	91.16	121.92	2.60	4	5.65	241.8
T1M7	9000	1.2	7.9	55.1	91.16	121.92	3.60	4	6.69	249.0
T1M7	9000	1.4	7.9	55.1	91.16	121.92	3.60	4	7.84	212.5
T1M7	6750	1.9	7.9	63.0	68.37	91.44	3.60	4	8.37	149.2
T1M7	6750	2.4	7.9	63.0	68.37	91.44	4.80	4	9.72	157.5
T1M7	4500	2.8	7.9	78.7	45.58	60.96	3.60	4	8.20	101.6
T1M7	4500	3.3	7.9	78.7	45.58	60.96	4.80	4	8.46	120.5
T1M7	4500	3.7	7.9	78.7	45.58	60.96	4.80	4	9.97	102.2
T1M7	4500	4.2	7.9	78.7	45.58	60.96	6.60	2	9.92	132.3
T1M7	4500	4.7	7.9	78.7	45.58	60.96	6.60	2	12.15	108.2
T1M8	22500	0.2	7.9	78.7	332.65	445.44	1.80	4	3.41	843.4
T1M8	18000	0.2	7.9	78.7	266.12	356.35	1.30	4	2.86	615.4
T1M8	18000	0.5	7.9	78.7	266.12	356.35	2.60	4	5.68	701.3
T1M8	18000	0.7	7.9	78.7	266.12	356.35	3.60	4	7.80	623.4
T1M8	13500	0.9	7.9	78.7	199.59	267.26	3.60	4	7.25	503.2
T1M8	13500	1.2	7.9	78.7	199.59	267.26	4.80	4	9.52	469.0
T1M8	9000	1.4	7.9	78.7	133.06	178.17	3.60	4	8.06	301.5
T1M8	9000	1.9	7.9	78.7	133.06	178.17	4.80	4	10.53	282.7
T1M8	9000	2.4	7.9	78.7	133.06	178.17	6.60	2	11.88	322.4
T1M8	9000	2.8	7.9	78.7	133.06	178.17	6.60	2	14.33	267.3
T1M9	45000	0.2	7.9	78.7	719.17	1064.82	1.80	4	3.28	1890.9
T1M9	45000	0.5	7.9	78.7	719.17	1064.82	3.60	4	6.35	1820.0
T1M9	45000	0.7	7.9	78.7	719.17	1064.82	6.60	4	11.06	2471.9
T1M9	36000	0.9	7.9	78.7	575.33	851.86	6.60	4	11.90	1854.1
T1M9	27000	1.2	7.9	78.7	431.50	638.90	6.60	4	10.87	1509.8

Ball Screw

Actuator	Nominal	Nominal	Stroke Range		Run	Start-up	Nominal		Motor	Stall
Type	Force	Actuator	min.	max	Torque		Motor	Pol	Current	Torque
		Speed			@Nominal Force		Size		@ Load/460V
	lbf.	inch/sec.	inch	inch	lb-ft.	lb-ft.	kW	P	A	lb-ft.
K1M4	1100	0.2	3.9	39.4	5.2	5.9	0.11	8	0.23	27.2
K1M4	1100	0.5	3.9	39.4	5.2	5.9	0.11	8	0.55	11.3
K1M4	1100	0.7	3.9	39.4	5.2	5.9	0.21	6	0.62	13.0
K1M4	1100	0.9	3.9	39.4	5.2	5.9	0.21	6	0.69	12.4
K1M4	1100	1.2	3.9	39.4	5.2	5.9	0.30	4	0.62	13.9
K1M4	1100	1.4	3.9	39.4	5.2	5.9	0.30	4	0.69	12.5
K1M4	850	1.9	3.9	39.4	3.9	4.4	0.30	4	0.75	8.6
K1M4	850	2.4	3.9	39.4	3.9	4.4	0.30	4	0.90	7.2
K1M5	2200	0.2	3.9	39.4	13.8	14.9	0.11	8	0.43	33.8
K1M5	2200	0.5	3.9	39.4	13.8	14.9	0.21	6	1.03	27.1
K1M5	2200	0.7	3.9	39.4	13.8	14.9	0.30	4	0.70	30.3
K1M5	2200	0.9	3.9	39.4	13.8	14.9	0.30	4	0.88	24.2
K1M5	2200	1.2	3.9	39.4	13.8	14.9	0.44	4	1.09	30.9
K1M5	2200	1.4	3.9	39.4	13.8	14.9	0.44	4	1.37	24.6
K1M5	2200	1.9	3.9	39.4	13.8	14.9	0.65	4	1.72	29.1
K1M5	1650	2.4	3.9	39.4	10.4	11.1	0.65	4	1.92	20.7
K1M5	1100	3.3	3.9	39.4	6.9	7.4	0.65	4	1.63	15.4
K1M6	4500	0.2	7.9	47.2	34.5	39.1	0.21	6	0.82	85.4
K1M6	4500	0.5	7.9	47.2	34.5	39.1	0.44	4	0.92	91.5
K1M6	4500	0.7	7.9	47.2	34.5	39.1	0.44	4	1.29	65.2
K1M6	4500	0.9	7.9	47.2	34.5	39.1	0.65	4	1.64	75.9
K1M6	4500	1.2	7.9	47.2	34.5	39.1	0.90	6	2.55	76.2
K1M6	4500	1.4	7.9	47.2	34.5	39.1	0.90	6	2.86	67.8
K1M6	4500	1.9	7.9	47.2	34.5	39.1	1.30	4	2.86	79.9
K1M6	4500	2.4	7.9	47.2	34.5	39.1	1.80	4	3.77	79.1
K1M6	3400	3.3	7.9	55.1	25.9	29.4	1.80	4	3.73	60.0
K1M6	2200	4.2	7.9	63.0	17.3	19.5	1.30	4	3.63	32.7
K1M7	9000	0.2	7.9	55.1	82.9	93.8	0.30	8	1.25	167.8
K1M7	9000	0.5	7.9	55.1	82.9	93.8	0.65	4	1.89	158.5
K1M7	9000	0.7	7.9	55.1	82.9	93.8	0.90	4	2.46	160.5
K1M7	9000	0.9	7.9	55.1	82.9	93.8	1.30	4	2.60	211.0
K1M7	9000	1.2	7.9	55.1	82.9	93.8	1.80	4	3.44	207.9
K1M7	9000	1.4	7.9	55.1	82.9	93.8	1.80	4	4.17	171.8
K1M7	6750	1.9	7.9	63.0	62.2	70.4	1.80	4	4.02	133.4
K1M7	6750	2.4	7.9	63.0	62.2	70.4	2.60	4	5.66	164.4
K1M7	5600	3.3	7.9	70.9	51.9	58.6	2.60	4	6.72	115.4
K1M7	5600	4.2	7.9	70.9	51.9	58.6	3.60	4	7.75	122.1
K1M7	3400	5.7	7.9	78.7	31.1	35.2	2.60	4	7.00	66.5
K1M8	22500	0.2	7.9	78.7	276	313	0.65	8	2.71	406.5
K1M8	22500	0.5	7.9	78.7	276	313	1.80	4	3.62	659.4
K1M8	18000	0.7	7.9	78.7	221	250	1.80	4	4.39	435.1
K1M8	18000	0.9	7.9	78.7	221	250	2.60	4	5.85	565.7
K1M8	18000	1.2	7.9	78.7	221	250	3.60	4	7.05	572.8
K1M8	18000	1.4	7.9	78.7	221	250	3.60	4	8.03	503.2
K1M8	13500	1.9	7.9	78.7	166	188	3.60	4	8.33	363.6
K1M8	13500	2.4	7.9	78.7	166	188	4.80	4	10.97	439.6
K1M8	9000	3.3	7.9	78.7	111	125	4.80	4	10.26	313.4
K1M9	45000	0.2	7.9	78.7	864	977	2.60	8	3.53	2857.1
K1M9	45000	0.5	7.9	78.7	864	977	3.60	4	8.60	1900.8
K1M9	40500	0.7	7.9	78.7	777	880	3.60	4	8.92	1528.2
K1M9	36000	0.9	7.9	78.7	691	782	4.80	4	9.86	1567.7
K1M9	31500	1.2	7.9	78.7	605	684	4.80	4	12.04	1123.2
K1M9	31500	1.4	7.9	78.7	605	684	6.60	4	14.81	1143.6
K1M9	31500	1.9	7.9	78.7	605	684	6.60	4	16.48	919.1
K1M9	25000	2.4	7.9	78.7	475	538	6.60	4	18.63	714.3

Actuator is Driven by a RACO motor via Belt Drive (C-Design)

ACME Screw

Actuator	Nominal	Nominal	Stroke Range		Run	Start-up	Nominal		Motor	Stall
Type	Force	Actuator	min.	max	Torque		Motor	Pol	Current	Torque
		Speed			@Nominal Force		Size		@ Load/460V
	lbf.	inch/sec.	inch	inch	lb-ft.	lb-ft.	kW	P	A	lb-ft.
T1C4	1100	0.9	3.9	39.4	5.12	6.87	0.30	8	1.31	9.82
T1C4	1100	1.2	3.9	39.4	5.12	6.87	0.44	6	1.28	9.80
T1C4	850	1.6	3.9	39.4	3.84	5.16	0.44	6	1.24	7.59
T1C4	550	2.4	3.9	39.4	2.56	3.44	0.44	4	1.11	5.63
T1C4	550	3.3	3.9	39.4	2.56	3.44	0.65	4	1.56	5.93
T1C4	550	4.7	3.9	39.4	2.56	3.44	1.30	2	1.83	12.92
T1C4	550	6.6	3.9	39.4	2.56	3.44	1.30	2	2.60	9.23
T1C5	2200	0.9	3.9	39.4	13.50	18.09	0.90	8	2.30	32.28
T1C5	2200	1.4	3.9	39.4	13.50	18.09	0.90	6	2.68	28.31
T1C5	1650	1.6	3.9	39.4	10.13	13.57	0.90	8	2.81	19.84
T1C5	1100	1.9	3.9	39.4	6.75	9.04	0.90	4	1.72	18.65
T1C5	1100	2.4	3.9	39.4	6.75	9.04	0.90	4	2.01	15.97
T1C5	1100	2.8	3.9	39.4	6.75	9.04	0.90	6	3.05	12.44
T1C5	1100	3.3	3.9	39.4	6.75	9.04	1.30	4	2.45	18.26
T1C5	1100	4.2	3.9	39.4	6.75	9.04	1.80	4	3.26	17.86
T1C6	4500	1.4	7.9	47.2	33.51	44.88	2.60	8	5.07	77.20
T1C6	3400	1.9	7.9	55.1	25.13	33.66	2.60	8	5.30	55.42
T1C6	2200	2.8	7.9	70.9	16.75	22.44	1.80	4	4.22	34.80
T1C6	2200	3.7	7.9	70.9	16.75	22.44	2.60	6	5.79	34.58
T1C6	2200	4.2	7.9	70.9	16.75	22.44	2.60	4	6.22	40.34
T1C6	2200	5.7	7.9	70.9	16.75	22.44	3.60	4	8.22	37.24
T1C7	4500	5.7	7.9	78.7	45.58	60.96	5.00	6	15.17	95.85

Ball Screw

Actuator	Nominal	Nominal	Stroke Range		Run	Start-up	Nominal		Motor	Stall
Type	Force	Actuator	min.	max	Torque		Motor	Pol	Current	Torque
		Speed			@Nominal Force		Size		@ Load/460V
	lbf.	inch/sec.	inch	inch	lb-ft.	lb-ft.	kW	P	A	lb-ft.
K1C4	850	1.9	3.9	39.4	3.89	4.40	0.30	8	1.00	9.81
K1C4	850	2.4	3.9	39.4	3.89	4.40	0.30	8	1.29	7.60
K1C4	550	3.3	3.9	39.4	2.59	2.94	0.30	8	1.20	5.46
K1C4	550	4.7	3.9	39.4	2.59	2.94	0.44	4	1.12	5.61
K1C4	550	6.6	3.9	39.4	2.59	2.94	0.44	4	1.57	3.98
K1C4	550	9.4	3.9	39.4	2.59	2.94	0.65	2	1.80	4.79
K1C4	550	13.5	3.9	39.4	2.59	2.94	1.30	2	2.63	9.22
K1C5	2200	1.9	3.9	39.4	13.81	15.65	0.65	8	2.47	22.27
K1C5	1650	2.4	3.9	39.4	10.36	11.74	0.65	8	2.17	19.10
K1C5	1100	3.3	3.9	39.4	6.90	7.83	0.65	8	2.01	13.72
K1C5	1100	3.7	3.9	39.4	6.90	7.83	0.65	4	1.85	13.50
K1C5	1100	4.2	3.9	39.4	6.90	7.83	0.9	6	2.23	17.41
K1C5	1100	5.7	3.9	39.4	6.90	7.83	1.3	6	3.12	12.39
K1C5	1100	6.6	3.9	39.4	6.90	7.83	1.3	4	2.51	18.22
K1C5	1100	7.6	3.9	39.4	6.90	7.83	1.3	2	3.08	21.02
K1C5	1100	9.4	3.9	39.4	6.90	7.83	1.3	2	3.60	18.00
K1C5	1100	11.3	3.9	39.4	6.90	7.83	2.6	2	4.53	19.18
K1C6	4500	2.8	7.9	47.2	34.53	39.13	2.6	8	5.23	77.22
K1C6	3400	3.7	7.9	55.1	25.90	29.35	2.6	8	5.46	55.39
K1C6	2200	5.7	7.9	63.0	17.27	19.57	1.8	4	4.28	34.81
K1C6	2200	7.6	7.9	63.0	17.27	19.57	2.6	4	6.41	40.27
K1C6	2200	11.3	7.9	63.0	17.27	19.57	3.6	4	8.47	37.25

Actuator is Driven by an In-line Gearmotor via Belt Drive (C-Design)

ACME Screw

Actuator	Nominal	Nominal	Stroke Range		Run	Start-up	Nominal		Motor	Stall
Type	Force	Actuator	min.	max	Torque		Motor	Pol	Current	Torque
		Speed			@Nominal Force		Size		@ Load/460V
	lbf.	inch/sec.	inch	inch	lb-ft.	lb-ft.	kW	P	A	lb-ft.
T1N4	1100	0.2	3.9	39.4	5.12	6.87	0.11	8	0.40	14.17
T1N4	1100	0.5	3.9	39.4	5.12	6.87	0.21	6	0.76	10.51
T1N4	1100	0.7	3.9	39.4	5.12	6.87	0.30	4	0.75	10.49
T1N5	2200	0.2	3.9	39.4	13.50	18.09	0.21	6	0.60	35.12
T1N5	2200	0.5	3.9	39.4	13.50	18.09	0.44	4	0.97	33.80
T1N5	2200	0.7	3.9	39.4	13.50	18.09	0.44	4	1.33	24.64
T1N6	4500	0.2	7.9	47.2	33.51	44.88	0.3	8	0.91	73.70
T1N6	4500	0.5	7.9	47.2	33.51	44.88	0.9	4	1.71	93.51
T1N6	4500	0.7	7.9	47.2	33.51	44.88	0.9	4	2.54	63.00
T1N6	4500	0.9	7.9	47.2	33.51	44.88	1.3	4	2.77	79.83
T1N6	4500	1.2	7.9	47.2	33.51	44.88	1.8	4	3.67	79.06
T1N7	11250	0.2	7.9	55.1	113.95	152.40	0.9	4	1.76	309.28
T1N7	11250	0.5	7.9	55.1	113.95	152.40	1.8	4	3.40	289.17
T1N7	11250	0.7	7.9	55.1	113.95	152.40	2.6	4	5.09	335.09
T1N7	9000	0.9	7.9	55.1	91.16	121.92	2.6	4	5.65	241.82
T1N7	9000	1.2	7.9	55.1	91.16	121.92	3.6	4	6.69	248.99
T1N7	9000	1.4	7.9	55.1	91.16	121.92	3.6	4	7.84	212.51
T1N7	6750	1.9	7.9	63.0	68.37	91.44	3.6	4	8.37	149.24
T1N7	6750	2.4	7.9	63.0	68.37	91.44	4.8	4	9.72	157.45
T1N7	4500	2.8	7.9	78.7	45.58	60.96	3.6	4	8.20	101.60
T1N7	4500	3.3	7.9	78.7	45.58	60.96	4.8	4	8.46	120.48
T1N7	4500	3.7	7.9	78.7	45.58	60.96	4.8	4	9.97	102.24
T1N7	4500	4.2	7.9	78.7	45.58	60.96	6.6	2	9.92	132.31
T1N7	4500	4.7	7.9	78.7	45.58	60.96	6.6	2	12.15	108.23
T1N8	22500	0.2	7.9	78.7	332.65	445.44	1.8	4	3.41	843.39
T1N8	18000	0.5	7.9	78.7	266.12	356.35	2.6	4	5.68	701.27
T1N8	18000	0.7	7.9	78.7	266.12	356.35	3.6	4	7.80	623.40
T1N8	13500	0.9	7.9	78.7	199.59	267.26	3.6	4	7.25	503.18
T1N8	13500	1.2	7.9	78.7	199.59	267.26	4.8	4	9.52	468.98
T1N8	9000	1.4	7.9	78.7	133.06	178.17	3.6	4	8.06	301.46
T1N8	9000	1.9	7.9	78.7	133.06	178.17	4.8	4	10.53	282.73
T1N8	9000	2.4	7.9	78.7	133.06	178.17	6.6	2	11.88	322.37
T1N8	9000	2.8	7.9	78.7	133.06	178.17	6.6	2	14.33	267.27
T1N9	45000	0.2	7.9	78.7	719.17	1064.82	1.8	4	9.52	1890.93
T1N9	45000	0.5	7.9	78.7	719.17	1064.82	3.6	4	8.06	1819.95
T1N9	45000	0.7	7.9	78.7	719.17	1064.82	6.6	4	10.53	1921.37
T1N9	36000	0.9	7.9	78.7	575.33	851.86	6.6	4	11.88	1441.17
T1N9	27000	1.2	7.9	78.7	431.50	638.90	6.6	4	14.33	1173.54

Ball Screw

Actuator	Nominal	Nominal	Stroke Range		Run	Start-up	Nominal		Motor	Stall
Type	Force	Actuator	min.	max	Torque		Motor	Pol	Current	Torque
		Speed			@Nominal Force		Size		@ Load/460V
	lbf.	inch/sec.	inch	inch	lb-ft.	lb-ft.	kW	P	A	lb-ft.
K1N4	1100	0.2	3.9	39.4	5.19	5.86	0.11	8	0.21	27.3
K1N4	1100	0.5	3.9	39.4	5.19	5.86	0.11	8	0.55	10.7
K1N4	1100	0.7	3.9	39.4	5.19	5.86	0.11	8	0.69	8.3
K1N4	1100	0.9	3.9	39.4	5.19	5.86	0.21	6	0.69	11.6
K1N4	1100	1.2	3.9	39.4	5.19	5.86	0.21	6	0.92	8.8
K1N4	1100	1.4	3.9	39.4	5.19	5.86	0.30	4	0.76	10.5
K1N5	2200	0.2	3.9	39.4	13.81	14.89	0.11	8	0.43	35.4
K1N5	2200	0.5	3.9	39.4	13.81	14.89	0.21	6	0.80	27.1
K1N5	2200	0.7	3.9	39.4	13.81	14.89	0.30	4	0.76	30.3
K1N5	2200	0.9	3.9	39.4	13.81	14.89	0.30	4	0.76	24.2
K1N5	2200	1.2	3.9	39.4	13.81	14.89	0.44	4	1.19	28.3
K1N5	2200	1.4	3.9	39.4	13.81	14.89	0.44	4	1.37	24.6
K1N6	4500	0.2	7.9	47.2	34.54	39.09	0.21	6	0.62	87.3
K1N6	4500	0.5	7.9	47.2	34.54	39.09	0.44	4	1.00	84.4
K1N6	4500	0.7	7.9	47.2	34.54	39.09	0.44	4	1.29	65.2
K1N6	4500	0.9	7.9	47.2	34.54	39.09	0.65	4	1.64	75.9
K1N6	4500	1.2	7.9	47.2	34.54	39.09	0.90	4	2.17	75.8
K1N6	4500	1.4	7.9	47.2	34.54	39.09	0.90	4	2.62	62.9
K1N6	4500	1.9	7.9	47.2	34.54	39.09	1.30	4	2.86	79.9
K1N6	4500	2.4	7.9	47.2	34.54	39.09	1.80	4	3.77	79.1
K1N7	9000	0.2	7.9	55.1	82.90	93.82	0.30	8	0.76	185.0
K1N7	9000	0.5	7.9	55.1	82.90	93.82	0.65	4	1.80	166.9
K1N7	9000	0.7	7.9	55.1	82.90	93.82	0.90	4	2.46	160.5
K1N7	9000	0.9	7.9	55.1	82.90	93.82	1.30	4	2.93	187.7
K1N7	9000	1.2	7.9	55.1	82.90	93.82	1.80	4	3.79	188.6
K1N7	9000	1.4	7.9	55.1	82.90	93.82	1.80	4	4.20	170.2
K1N7	6750	1.9	7.9	63.0	62.18	70.36	1.80	4	4.49	119.5
K1N7	6750	2.4	7.9	63.0	62.18	70.36	2.60	4	5.66	164.4
K1N7	5600	3.3	7.9	70.9	51.81	58.64	2.60	4	6.72	115.4
K1N7	5600	4.2	7.9	70.9	51.81	58.64	3.60	4	7.75	122.1
K1N8	22500	0.2	7.9	70.9	276.34	312.73	0.90	8	2.58	588.9
K1N8	22500	0.5	7.9	70.9	276.34	312.73	1.80	4	3.62	659.4
K1N8	18000	0.7	7.9	70.9	221.08	250.18	1.80	4	4.39	435.1
K1N8	18000	0.9	7.9	70.9	221.08	250.18	2.60	4	5.85	565.7
K1N8	18000	1.2	7.9	70.9	221.08	250.18	3.60	4	7.33	550.8
K1N8	18000	1.4	7.9	70.9	221.08	250.18	3.60	4	7.86	513.6
K1N8	13500	1.9	7.9	70.9	165.80	187.64	3.60	4	8.42	359.5
K1N8	13500	2.4	7.9	70.9	165.80	187.64	4.80	4	9.79	378.7
K1N8	9000	3.3	7.9	70.9	110.54	125.09	4.80	4	9.79	252.5
K1N9	45000	0.2	7.9	70.9	863.57	977.27	2.60	8	3.53	2857.1
K1N9	45000	0.5	7.9	70.9	863.57	977.27	3.60	4	7.97	1980.4
K1N9	40500	0.7	7.9	70.9	777.22	879.54	3.60	4	8.92	1592.2
K1N9	36000	0.9	7.9	70.9	690.86	781.81	4.80	4	9.86	1567.7
K1N9	31500	1.2	7.9	70.9	604.50	684.09	4.80	4	12.04	1123.2
K1N9	31500	1.4	7.9	70.9	604.50	684.09	6.60	4	14.81	1143.6
K1N9	31500	1.9	7.9	70.9	604.50	684.09	6.60	4	18.43	919.1
K1N9	25000	2.4	7.9	70.9	474.97	537.50	6.60	4	18.63	714.3

Actuator Driven by a Right Angle Gearmotor

ACME Screw

Actuator	Nominal	Nominal	Stroke Range		Run	Start-up	Nominal		Motor	Stall
Type	Force	Actuator	min.	max	Torque		Motor	Pol	Current	Torque
		Speed			@Nominal Force		Size		@ Load/460V
	lbf.	inch/sec.	inch	inch	lb-ft.	lb-ft.	kW	P	A	lb-ft.
T1T4	1100	0.2	3.9	39.4	5.12	6.87	0.11	8	0.37	15.15
T1T4	1100	0.5	3.9	39.4	5.12	6.87	0.30	4	0.52	15.25
T1T4	1100	0.7	3.9	39.4	5.12	6.87	0.30	4	0.63	12.40
T1T4	1100	0.9	3.9	39.4	5.12	6.87	0.44	4	0.81	15.47
T1T4	1100	1.2	3.9	39.4	5.12	6.87	0.65	2	0.86	19.95
T1T4	1100	1.4	3.9	39.4	5.12	6.87	0.65	2	0.95	18.05
T1T4	850	1.9	3.9	39.4	3.84	5.16	0.65	2	0.97	13.26
T1T5	2200	0.2	3.9	39.4	13.50	18.09	0.21	6	0.65	32.16
T1T5	2200	0.5	3.9	39.4	13.50	18.09	0.44	4	0.91	36.13
T1T5	2200	0.7	3.9	39.4	13.50	18.09	0.44	4	1.27	25.88
T1T5	2200	0.9	3.9	39.4	13.50	18.09	0.90	4	1.50	42.91
T1T5	2200	1.2	3.9	39.4	13.50	18.09	0.90	4	2.04	31.53
T1T5	2200	1.4	3.9	39.4	13.50	18.09	1.30	2	2.10	59.44
T1T5	1100	1.9	3.9	39.4	6.75	9.04	0.65	2	1.24	18.05
T1T5	1100	2.4	3.9	39.4	6.75	9.04	0.65	2	1.69	13.26
T1T6	4500	0.2	7.9	47.2	33.51	44.88	0.3	8	1.15	73.56
T1T6	4500	0.5	7.9	47.2	33.51	44.88	0.9	4	1.76	90.56
T1T6	4500	0.7	7.9	47.2	33.51	44.88	0.9	4	2.47	64.61
T1T6	4500	0.9	7.9	47.2	33.51	44.88	1.3	4	2.64	83.93
T1T6	4500	1.2	7.9	47.2	33.51	44.88	1.8	4	3.09	92.59
T1T6	4500	1.4	7.9	47.2	33.51	44.88	1.8	4	4.21	68.76
T1T6	3400	1.9	7.9	47.2	25.13	33.66	2.6	2	3.98	79.18
T1T6	2200	2.4	7.9	55.1	16.75	22.44	2.6	2	2.92	71.66
T1T6	2200	2.8	7.9	55.1	16.75	22.44	2.6	2	3.98	52.65
T1T7	11250	0.2	7.9	55.1	113.95	152.40	0.9	4	1.78	305.59
T1T7	11250	0.5	7.9	55.1	113.95	152.40	1.8	4	3.28	300.06
T1T7	11250	0.7	7.9	55.1	113.95	152.40	2.6	4	5.38	317.24
T1T7	9000	0.9	7.9	55.1	91.16	121.92	2.6	4	5.44	250.74
T1T7	9000	1.2	7.9	55.1	91.16	121.92	3.6	4	6.60	252.34
T1T7	9000	1.4	7.9	55.1	91.16	121.92	3.6	4	7.56	220.33
T1T7	6750	1.9	7.9	55.1	68.37	91.44	4.8	2	7.28	208.72
T1T7	6750	2.4	7.9	55.1	68.37	91.44	4.8	2	9.36	162.47
T1T7	4500	3.3	7.9	63.0	45.58	60.96	4.8	2	8.72	116.22
T1T8	22500	0.2	7.9	78.7	332.65	445.44	1.8	4	3.06	937.34
T1T8	18000	0.5	7.9	78.7	266.12	356.35	2.6	4	6.23	639.67
T1T8	18000	0.7	7.9	78.7	266.12	356.35	3.6	4	8.37	580.60
T1T8	13500	0.9	7.9	78.7	199.59	267.26	3.6	4	7.88	462.62
T1T8	13500	1.2	7.9	78.7	199.59	267.26	4.8	4	10.09	575.12
T1T8	9000	1.4	7.9	78.7	133.06	178.17	3.6	4	7.64	318.21
T1T8	9000	1.9	7.9	78.7	133.06	178.17	4.8	4	10.15	293.29
T1T8	9000	2.4	7.9	78.7	133.06	178.17	6.6	2	12.08	317.75
T1T8	9000	2.8	7.9	78.7	133.06	178.17	6.6	2	15.31	250.77
T1T9	45000	0.2	7.9	78.7	719.17	1064.82	1.8	4	2.95	2102.23
T1T9	45000	0.5	7.9	78.7	719.17	1064.82	3.6	4	7.40	1775.29
T1T9	45000	0.7	7.9	78.7	719.17	1064.82	6.6	4	11.97	2284.72
T1T9	36000	0.9	7.9	78.7	575.33	851.86	6.6	4	11.35	1928.07
T1T9	27000	1.2	7.9	78.7	431.50	638.90	6.6	4	10.53	1558.32

Ball Screw

Actuator	Nominal	Nominal	Stroke Range		Run	Start-up	Nominal		Motor	Stall
Type	Force	Actuator	min.	max	Torque		Motor	Pol	Current	Torque
		Speed			@Nominal Force		Size		@ Load/460V
	lbf.	inch/sec.	inch	inch	lb-ft.	lb-ft.	kW	P	A	lb-ft.
K1T4	1100	0.2	3.9	39.4	5.16	5.90	0.11	8	0.19	28.2
K1T4	1100	0.5	3.9	39.4	5.16	5.90	0.11	8	0.52	10.4
K1T4	1100	0.7	3.9	39.4	5.16	5.90	0.21	6	0.53	15.3
K1T4	1100	0.9	3.9	39.4	5.16	5.90	0.21	6	0.65	12.4
K1T4	1100	1.2	3.9	39.4	5.16	5.90	0.21	6	0.88	9.1
K1T4	1100	1.4	3.9	39.4	5.16	5.90	0.44	2	0.56	17.8
K1T4	850	1.9	3.9	39.4	3.91	4.43	0.44	2	0.64	11.8
K1T4	850	2.4	3.9	39.4	3.91	4.43	0.44	2	0.78	9.6
K1T5	2200	0.2	3.9	39.4	13.79	14.90	0.11	8	0.44	32.8
K1T5	2200	0.5	3.9	39.4	13.79	14.90	0.21	6	0.82	26.2
K1T5	2200	0.7	3.9	39.4	13.79	14.90	0.30	4	0.72	29.6
K1T5	2200	0.9	3.9	39.4	13.79	14.90	0.30	4	0.93	22.9
K1T5	2200	1.2	3.9	39.4	13.79	14.90	0.44	4	1.06	31.6
K1T5	2200	1.4	3.9	39.4	13.79	14.90	0.44	2	1.07	24.9
K1T5	2200	1.9	3.9	39.4	13.79	14.90	0.65	2	1.39	33.3
K1T5	1650	2.4	3.9	39.4	10.40	11.14	0.65	2	1.28	27.1
K1T5	1100	3.3	3.9	39.4	6.93	7.45	0.65	2	1.29	18.1
K1T6	4500	0.2	7.9	47.2	34.52	39.09	0.21	6	0.65	82.4
K1T6	4500	0.5	7.9	47.2	34.52	39.09	0.44	4	1.03	81.9
K1T6	4500	0.7	7.9	47.2	34.52	39.09	0.44	4	1.19	70.6
K1T6	4500	0.9	7.9	47.2	34.52	39.09	0.65	4	1.55	80.4
K1T6	4500	1.2	7.9	47.2	34.52	39.09	0.90	4	2.08	79.3
K1T6	4500	1.4	7.9	47.2	34.52	39.09	0.90	4	2.55	64.4
K1T6	4500	1.9	7.9	47.2	34.52	39.09	1.30	2	3.17	102.1
K1T6	4500	2.4	7.9	47.2	34.52	39.09	1.30	2	3.62	89.4
K1T6	3400	3.3	7.9	55.1	25.89	29.35	1.30	2	4.08	59.4
K1T6	2200	4.2	7.9	63.0	17.26	19.55	1.30	2	3.35	48.4
K1T7	9000	0.2	7.9	55.1	82.90	93.82	0.30	8	1.13	185.5
K1T7	9000	0.5	7.9	55.1	82.90	93.82	0.65	4	1.90	157.4
K1T7	9000	0.7	7.9	55.1	82.90	93.82	0.90	4	2.37	166.8
K1T7	9000	0.9	7.9	55.1	82.90	93.82	1.30	4	2.99	183.5
K1T7	9000	1.2	7.9	55.1	82.90	93.82	1.80	4	3.64	196.8
K1T7	9000	1.4	7.9	55.1	82.90	93.82	1.80	4	4.10	174.7
K1T7	6750	1.9	7.9	63.0	62.18	70.36	1.80	4	4.43	121.1
K1T7	6750	2.4	7.9	63.0	62.18	70.36	2.60	4	5.92	157.2
K1T7	5600	3.3	7.9	70.9	51.85	58.64	2.60	2	5.46	119.1
K1T7	5600	4.2	7.9	70.9	51.85	58.64	4.80	2	9.91	116.2
K1T7	3400	5.7	7.9	70.9	31.13	35.18	2.60	2	5.89	66.3
K1T8	22500	0.2	7.9	78.7	276	313	0.65	8	2.45	449.2
K1T8	22500	0.5	7.9	78.7	276	313	1.80	4	3.65	653.9
K1T8	18000	0.7	7.9	78.7	221	250	1.80	4	4.21	453.5
K1T8	18000	0.9	7.9	78.7	221	250	2.60	4	5.83	568.0
K1T8	18000	1.2	7.9	78.7	221	250	3.60	4	6.96	580.6
K1T8	18000	1.4	7.9	78.7	221	250	3.60	4	8.76	462.6
K1T8	13500	1.9	7.9	78.7	166	188	3.60	4	8.45	358.4
K1T8	13500	2.4	7.9	78.7	166	188	4.80	4	10.17	364.8
K1T8	9000	3.3	7.9	78.7	111	125	4.80	4	9.49	260.6
K1T9	45000	0.2	7.9	118	864	977	1.4	6	4.1	1755
K1T9	45000	0.5	7.9	118	864	977	2.9	4	7.3	1523
K1T9	40500	0.7	7.9	118	777	880	4.8	4	8.7	1513
K1T9	36000	0.9	7.9	118	691	782	4.8	4	10.3	1138
K1T9	36000	1.2	7.9	118	691	782	7.2	4	13.1	1358
K1T9	31500	1.4	7.9	118	605	684	7.2	4	13.1	1192
K1T9	31500	1.9	7.9	118	605	684	9.8	4	18.3	1028
K1T9	27000	2.4	7.9	118	518	586	9.8	4	20.1	802
K1T10	112500	0.2	15.7	157	2159	2443	4.8	4	7.1	5168
K1T10	112500	0.5	15.7	157	2159	2443	9.8	4	18.3	3670
K1T10	112500	0.7	15.7	157	2159	2443	12.0	4	23.8	3407
K1T10	112500	0.9	15.7	157	2159	2443	14.3	4	32.7	2803
K1T10	90000	1.2	15.7	157	1727	1955	14.3	4	32.6	2251
K1T10	90000	1.4	15.7	157	1727	1955	19.5	4	36.1	2424
K1T10	90000	1.9	15.7	157	1727	1955	28.6	4	49.3	2424
K1T11	225000	0.2	15.7	236	4318	4886	7.2	4	13.2	8442
K1T11	225000	0.5	15.7	236	4318	4886	14.3	4	35.3	5200
K1T11	225000	0.7	15.7	236	4318	4886	28.6	4	46.4	6196
K1T11	225000	0.9	15.7	236	4318	4886	39.0	4	54.3	7084
K1T11	180000	1.2	15.7	236	3454	3909	39.0	4	62.8	4902
K1T11	180000	1.4	15.7	236	3454	3909	39.0	4	72.0	4278

SCREW DRIVE OPTIONS

ACME or Ball Screw: Select Your Performance Profile

Cycle frequency, load-holding requirements, and positional accuracy targets collectively determine which drive is right for your application. Both ACME and ball screw configurations are available across the applicable MA Series frame sizes. Select the one that matches your performance envelope, not the nearest available option.

ACME SCREW

SELF-LOCKING · ECONOMICAL · PROVEN

Geometric self-locking, load retention requires no powered brake or holding circuit
Lower per-unit cost for moderate-cycle duty applications
Available on all MA Series frame sizes, including the highest-force configurations
Suited to clamping, press tooling, valve actuation, and gate-positioning tasks
Reduced maintenance burden, no recirculating ball element to inspect or replace
Reliable load retention through power interruptions without auxiliary brake hardware

BALL SCREW

HIGH ACCURACY · HIGH EFFICIENCY · HIGH CYCLE

Reduced mechanical losses for installations where energy consumption is a design constraint
Tighter positional accuracy and move-to-move repeatability versus the ACME equivalent
Available across the MA Series frame sizes in selected drive configurations
Designed for servo motor pairing and encoder-based closed-loop control
Handles high-frequency cycling and continuous motion profiles without degrading accuracy
The correct selection wherever cumulative positioning drift cannot be tolerated

MOTOR & DRIVE COMPATIBILITY

ONE PLATFORM. FOUR DRIVE CONFIGURATIONS.

Because the MA Series separates the mechanical drive from the power source, system integrators aren't locked into a single motor type. Four motor configurations are supported across the platform — attach what your control architecture already calls for.

STANDARD RACO MOTOR

Three-phase · Multi-pole · Industrial duty
AC GEAR MOTOR

Single or three-phase · Compact gearhead integration
DC GEAR MOTOR

24V DC · Mobile and battery-powered systems
SERVO MOTOR

Closed-loop positioning · Encoder-compatible

TARGET APPLICATIONS

Where Industrial Linear Actuators Are Specified

Engineers in force-critical industries reach for the MA Series when standard catalog actuators can't meet the load spec, the stroke, or the motor interface their machine demands. These are the environments where the platform earns its place.

Heavy Industrial Machinery

Hydraulic press replacements, die-change actuators, conveyor divert mechanisms, and clamp tooling running multi-shift production schedules at sustained force outputs demand an actuator with proven industrial duty ratings.
Aerospace & Defense

Structural test rigs, ground support actuators, cargo handling systems, and flight control surface test stands require a linear electric actuator that meets the force and accuracy levels the application actually demands.
Energy & Utilities

Pipeline valve actuation, spillway gate control, solar array tracking drives, and turbine blade positioning involve long strokes, high sustained loads, and installations that may run unattended for extended periods.
Automotive Manufacturing

Welding fixture locators, body panel transfer tooling, chassis assembly positioners, and press-fit stations require custom linear actuators that maintain the same position shift after shift, with service intervals long enough to avoid becoming a line availability problem.
Material Handling

Scissor lift tables, loading dock equipment, pallet transfer systems, and heavy load positioners benefit from ACME screw geometry; loads are mechanically retained at any stroke position without a powered holding circuit, even when the machine loses power mid-cycle.
Medical & Lab Automation

Diagnostic imaging platforms, surgical table elevation systems, sample processing equipment, and laboratory automation cells run in noise-sensitive environments where smooth, repeatable linear motion is a clinical requirement.

Talk to an Engineer Before You Spec

RACO's applications team in Bethel Park, PA, works with you directly on frame selection, screw type, motor pairing, and stroke configuration — so the actuator you order fits the machine you're building. Technical drawings and 3D CAD files are available at no charge before you commit to a purchase.

SPEAK WITH AN ENGINEER

RACO'S MA SERIES — MODULAR ACTUATOR SYSTEM

HEAVY DUTY LINEAR ACTUATORS BUILT FOR INDUSTRIAL LOADS

WHY RACO MA SERIES

WHEN LOAD PROFILES DEMAND MORE THAN A STANDARD ACTUATOR

Modular by Design

Broad Force Range

Servo-Ready Architecture

Scalable Across Programs

Domestic Engineering Support

3D CAD on Request

PRODUCT OVERVIEW A Heavy Duty Linear Actuator System That Adapts to Your Drive

Actuator is Driven by a Direct Drive RACO Motor

ACME Screw

Ball Screw

Actuator is Driven by an In-line Gearmotor

ACME Screw

Ball Screw

Actuator is Driven by a RACO motor via Belt Drive (C-Design)

ACME Screw

Ball Screw

Actuator is Driven by an In-line Gearmotor via Belt Drive (C-Design)

ACME Screw

Ball Screw

Actuator Driven by a Right Angle Gearmotor

ACME Screw

Ball Screw

ACME SCREW

BALL SCREW

Heavy Industrial Machinery

Aerospace & Defense

Energy & Utilities

Automotive Manufacturing

Material Handling

Medical & Lab Automation

Talk to an Engineer Before You Spec
