Rotary Actuator
The RACO Rotary Actuator is designed to automate the operation of valves, gates, dampers, louvers and other rotary position applications requiring partial or multi-turn rotational movement.

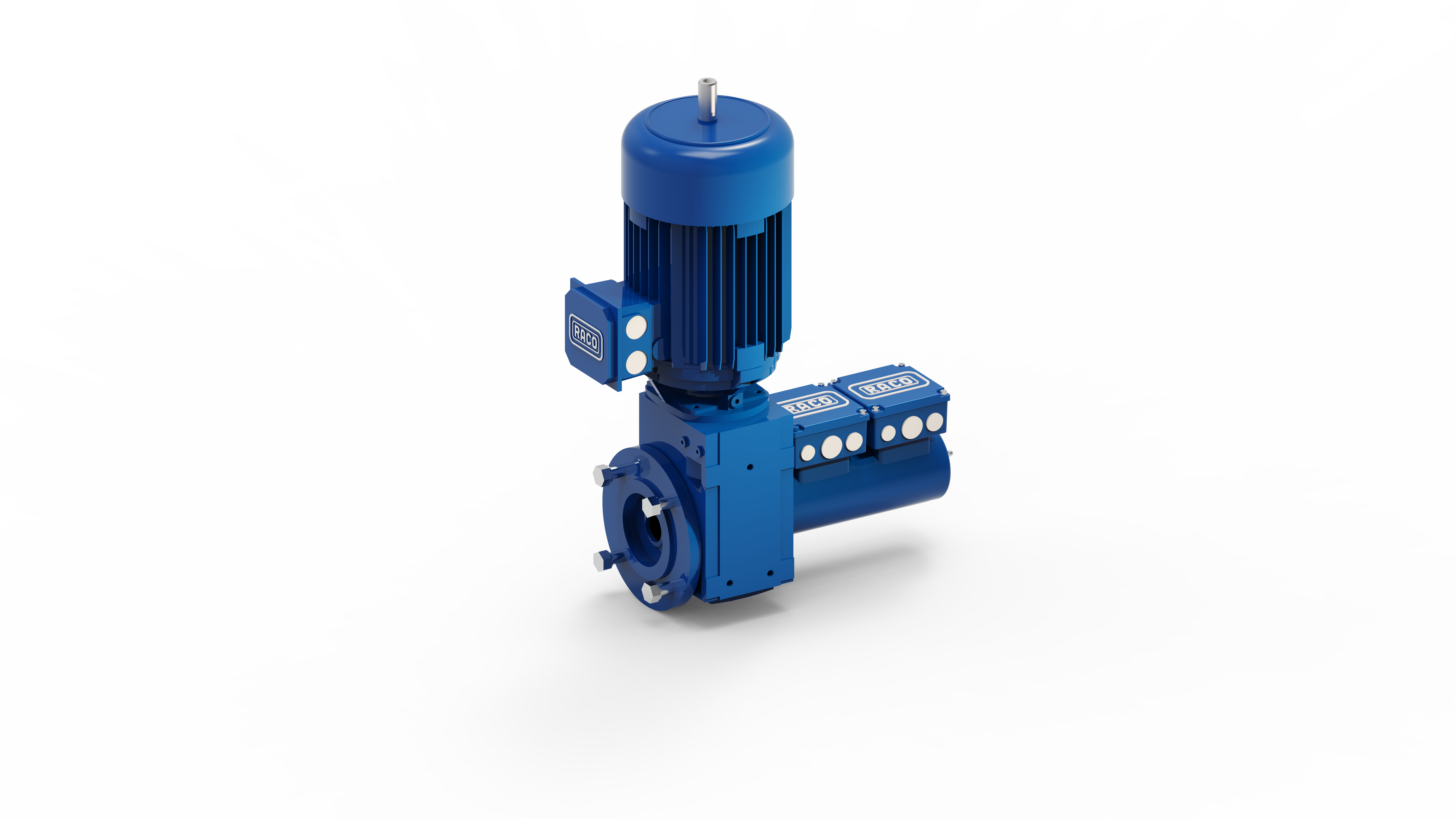

The RACO Rotary Actuator consists of three basic components: Gearbox, Motor and adjustable limit switches secured in an accessory housing. The helical gear design provides a high level of efficiency with low noise admission. The gearbox is maintenance free and permanently lubricated with synthetic oil. The output interface is available as hollow or solid shaft and is equipped with a standard flange. The IP65 rated RACO Motor is an asynchronous three phase AC induction motor with a low inertia for intermitted duty. The motor has a B side interface to except a brake with or without a hand release mechanism and a hand wheel or auxiliary equipment such as limit switches or electronic position sensors. If the B side of the motor is used with a hand wheel the auxiliary equipment will be mounted on the B side of the helical gearbox. As a standard the motor is equipped with internal thermal switches for motor winding protection.
Available Feed Back Devices:
-Adjustable Mechanical Limit Switches
-Analog 0-10V or 4-20mA feedback Signal
-EPS02: Electronic Limit Switches with output relay contacts
-EPS06: Electronic Limit Switches with two output relay contacts, additional four 24DC open collector NPN transistors output channels for mid stroke indication or PWM, Analog 0-10Vor 4-20mA output
Available Mechanical Devices:
-Hand Wheel
-Hand Wheel with Electrical Interlock and Mechanical Disengage
-Brake
-Brake with Electrical Interlock and Mechanical Disengage
Available Protective Devices:
-Thrust Overload Protection
-Thermal Motor Overtemperature Switch
-Motor and / or Accessory Housing Heater
Standard Rotary Actuator Performance Range:
90° Turn | Torque |
1 sec | 300-1500 lb-ft |
5 sec | 400-5200 lb-ft |
10 sec | 500-17500 lb-ft |
30 sec | 650-17500 lb-ft |
