RACO
Compact

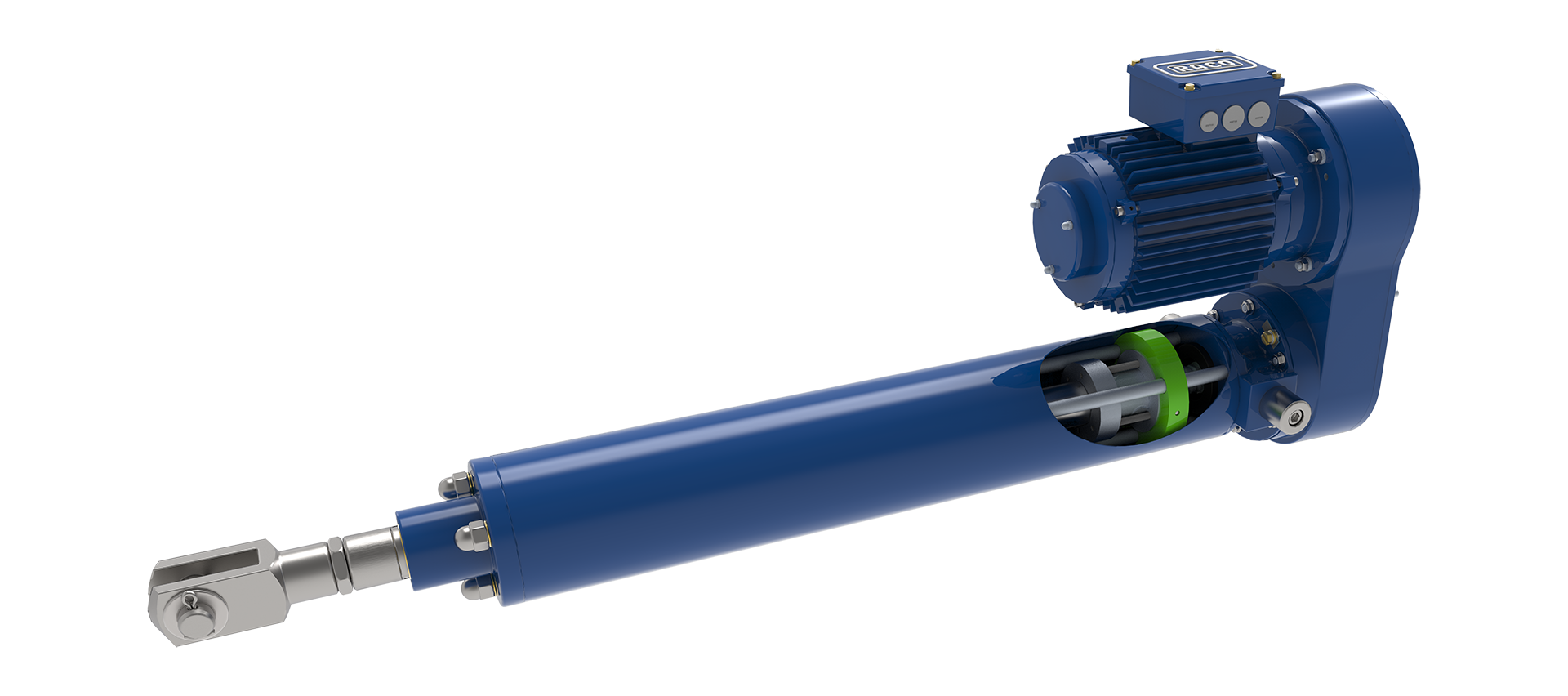

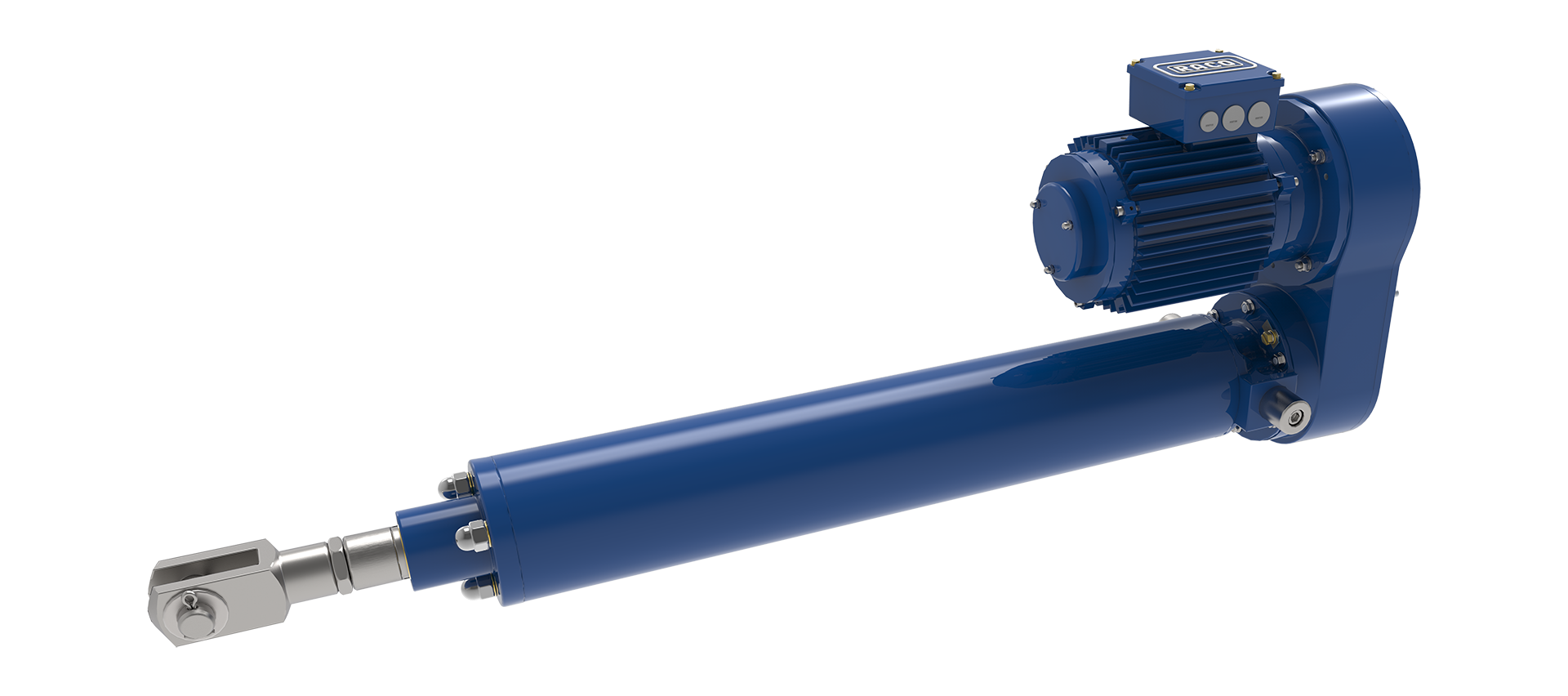

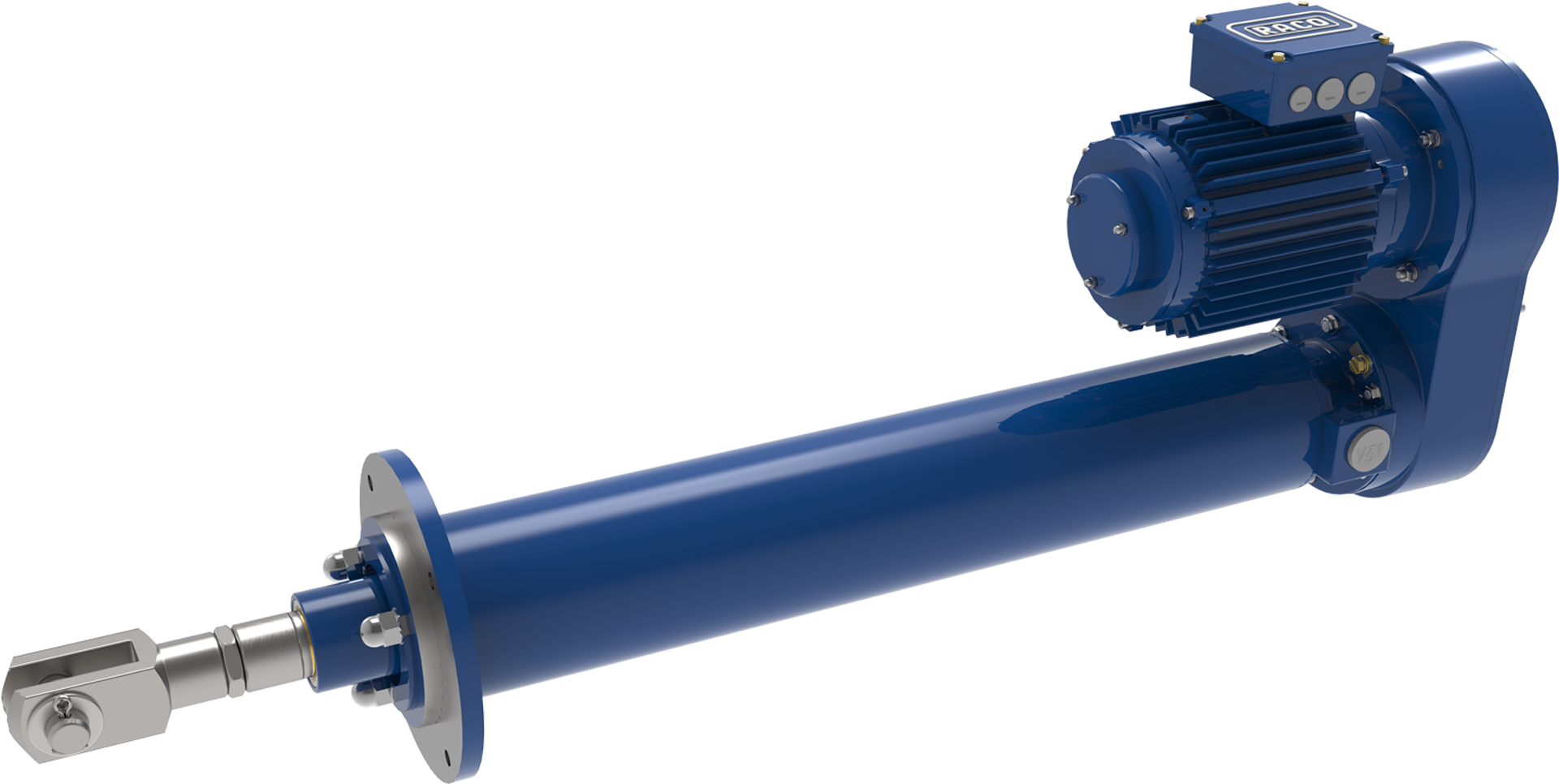

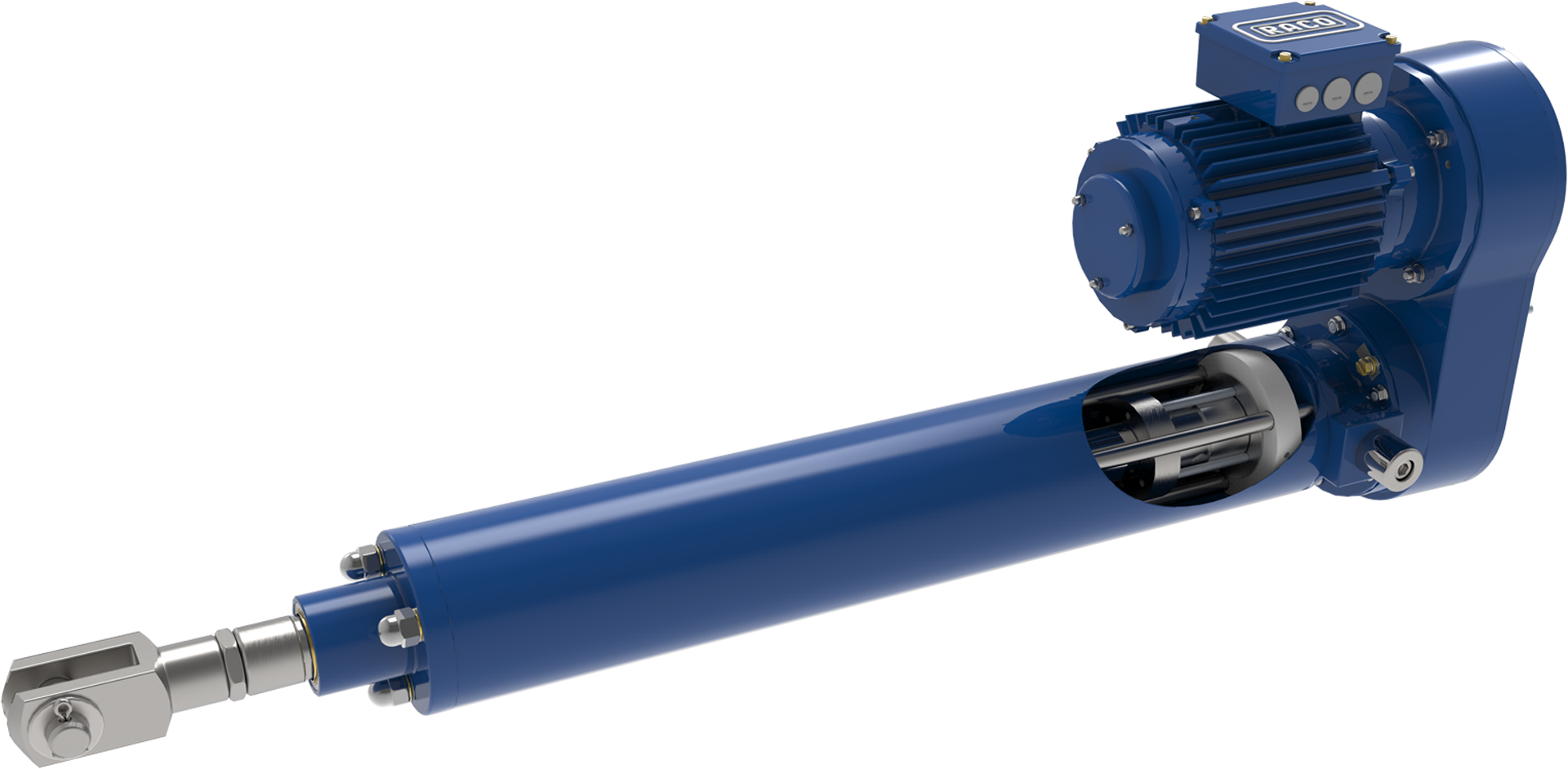

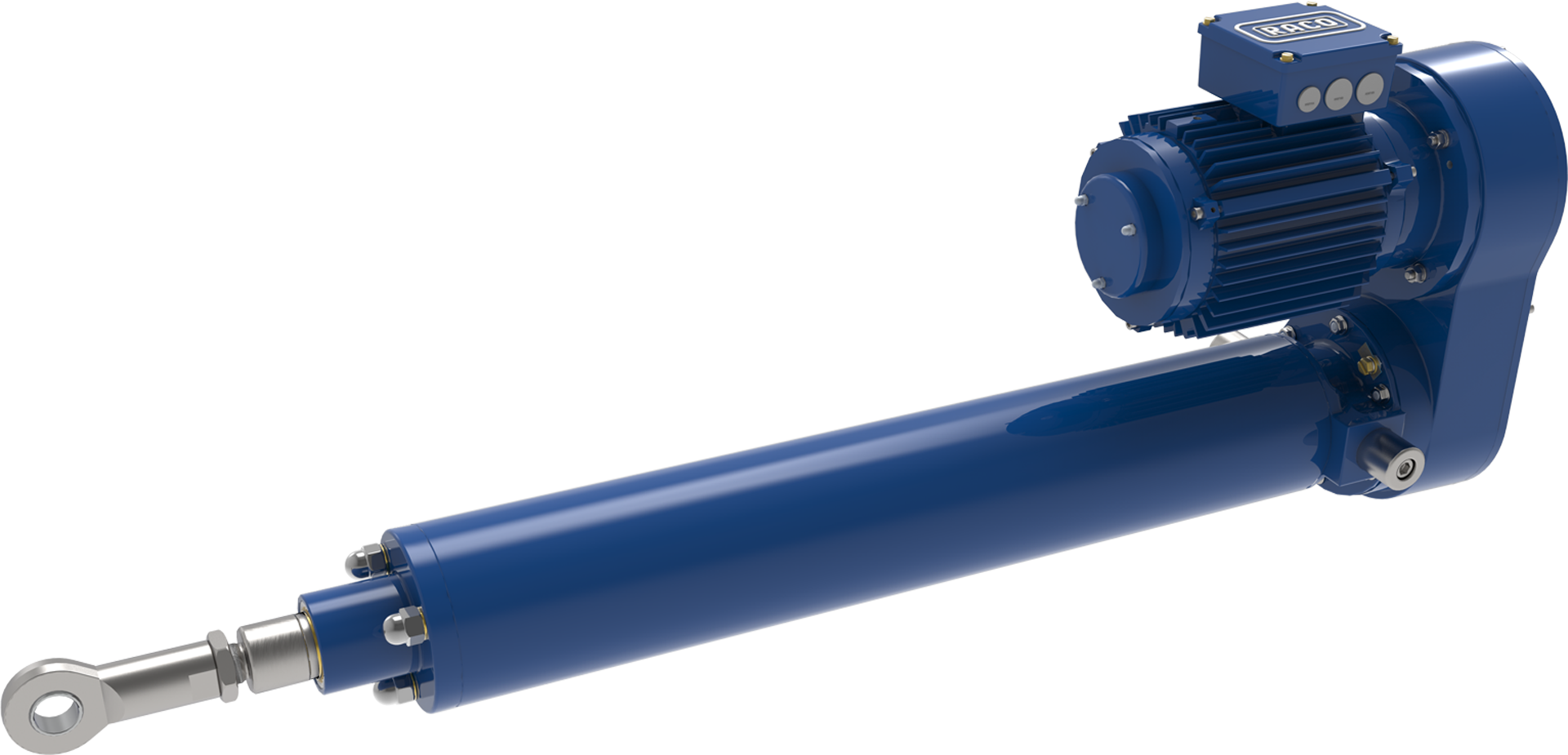

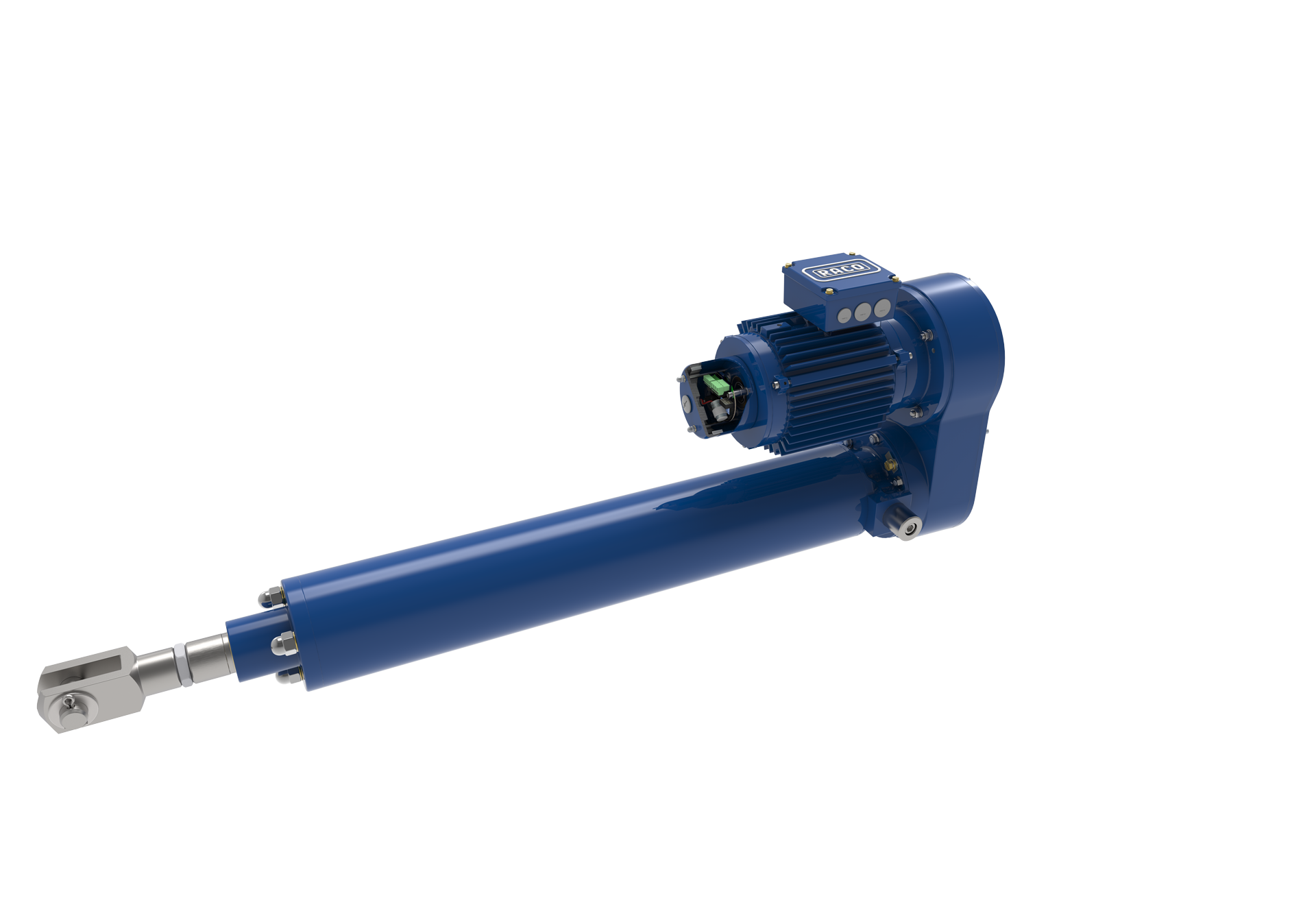

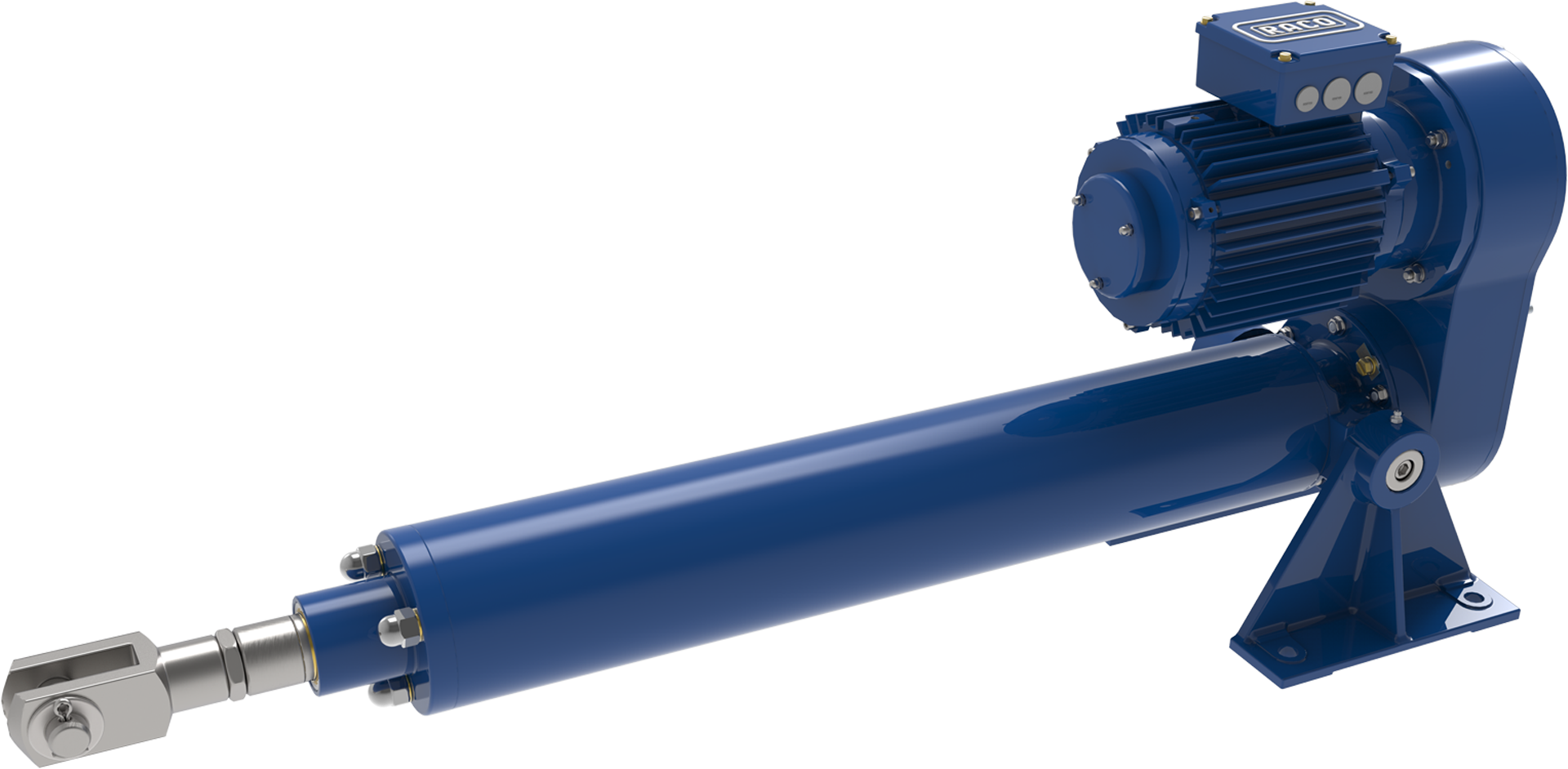

Electric actuator K6C4-140 - 148380
| Adjustment range | 100 | 200 | 300 | 400 | 500 | 600 |

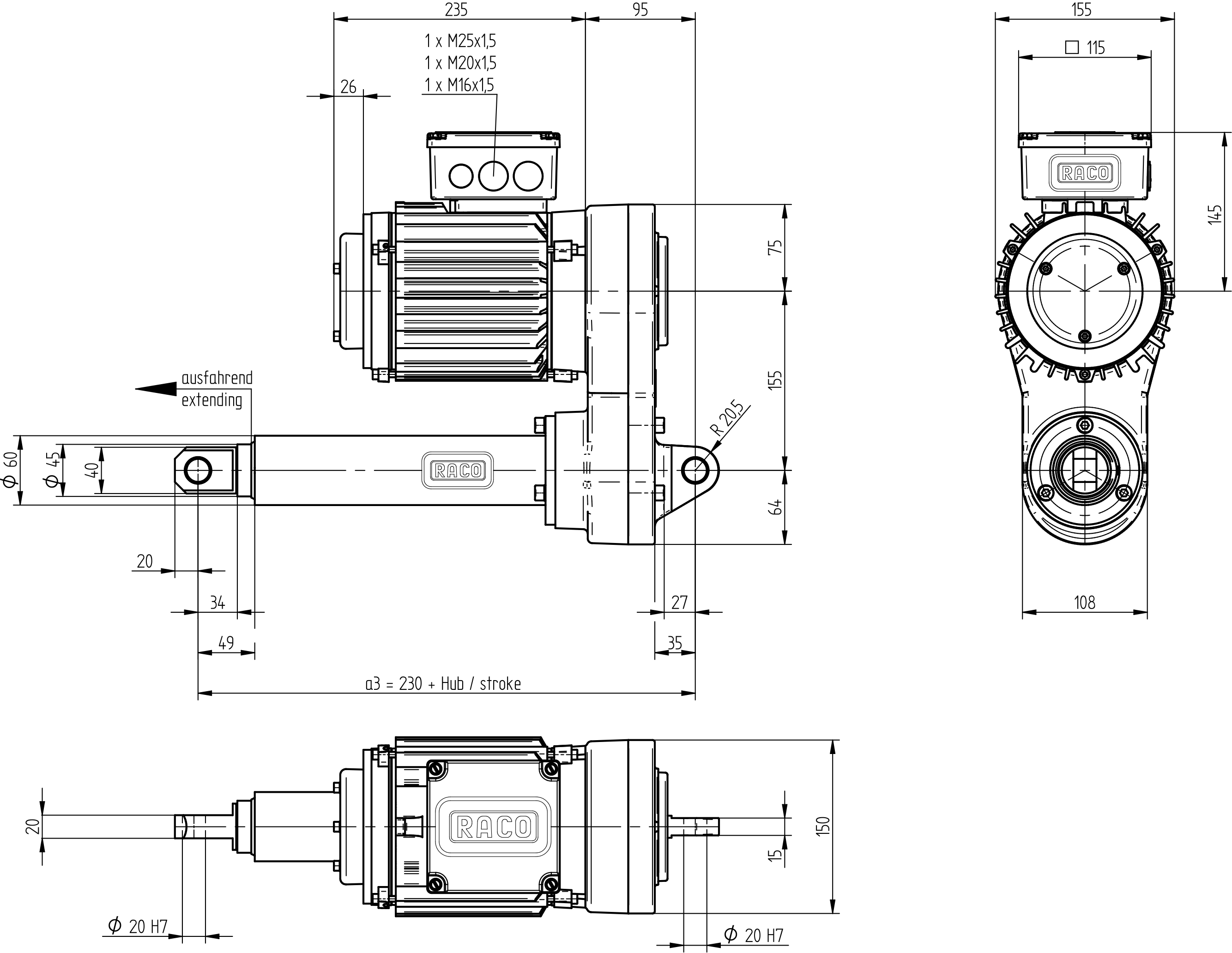

| a3 (mm) | 330 | 430 | 530 | 630 | 730 | 830 |
| Spindle type | Ball screw |
| Thrust force (kN) | 5.00 |
| Voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Speed (mm/s) | 50.00 |
| Power (kW) | 0.75 |
| Current (A) | 2.10 |
| Converter (kW) | — |
